Programmable mixing for throttle-activated glow with manual override (updated and simplified!)

Instructions for programming JR XP8103
These instructions should be quite easily translated to any radio with programmable mix...

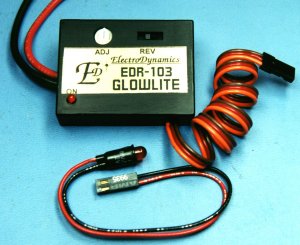

  • The GlowLite plugs into Channel # 7 (AUX2 / Spoiler).
  • The Mix Switch on the Tx selects throttle activation or Manual override to Glow "ON".
Preliminary:
  • Plug the GlowLite into AUX 2
  • Set the GlowLite ADJ pot to Approx. Center of travel:
  • Set the Glowlite REV switch to the Left
Set the XP8103:
  • REV SW (SPOI): NORM
  • (Disable the Spoiler (AUX2) Knob) TRVL ADJ (SPOI): +0% / -0%
Programming:
Use a standard (i.e., non-multipoint) mix for simplicity: [PROG MIX 3]:

THRO > SPOI
        Rate:     -125%
                        0%
SW:   MIX
Offset
                     -90

Operation:

  • MIX OFF : Glow ON
  • MIX ON:
    • Glow ON when throttle LOW
    • Glow OFF when throttle HIGH

DONE!  E-Z, No-Hassle!
