EDR-107P
PROGRAMMABLE Fiber Optic Kill Switch
System
The EDR-107 Fiber Optic Kill Switch System allows you to stop a gasoline engine from your Tx with
absolutely no
possibility of interference getting into the radio.
IMAA rules state that you must be able to positively stop your engine from
your Tx. Some gas engines are reluctant to stop by simply closing the throttle. Also, in case of a throttle servo failure, a
simple flip of the Aux switch on the Tx, and you can bring your airplane safely home instead of limping around in the sky
waiting for the fuel to run out, hopefully before the Rx battery does!
The EDR-107P works with electronic (battery) ignition systems, e.g., CH Electronics, DA, 3W, SPE, 3MM, etc.
- E-Z Installation!
Just plug in-between Ignition System and Battery.
- Positive Engine
Kill from the transmitter.
- Plastic Fiber Optic Link between Rx and
Kill Switch - Absolutely NO RF Interference!

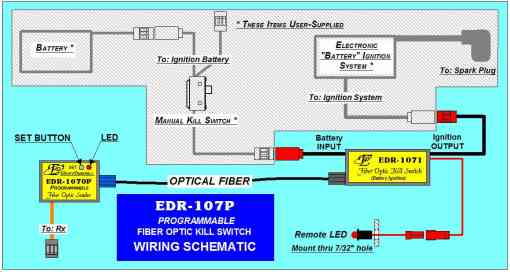

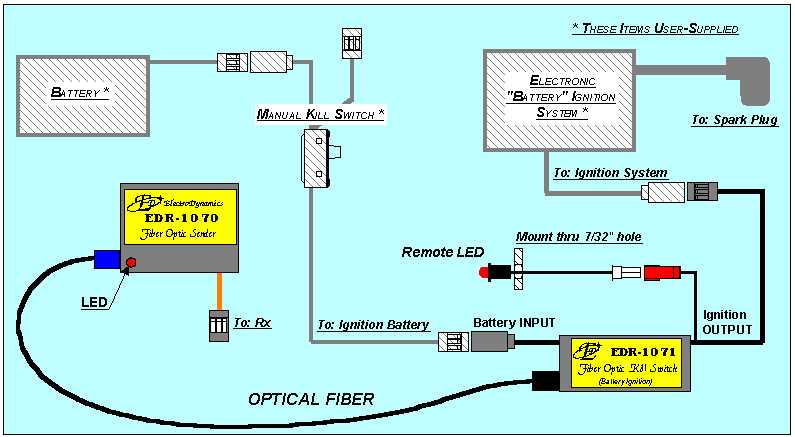

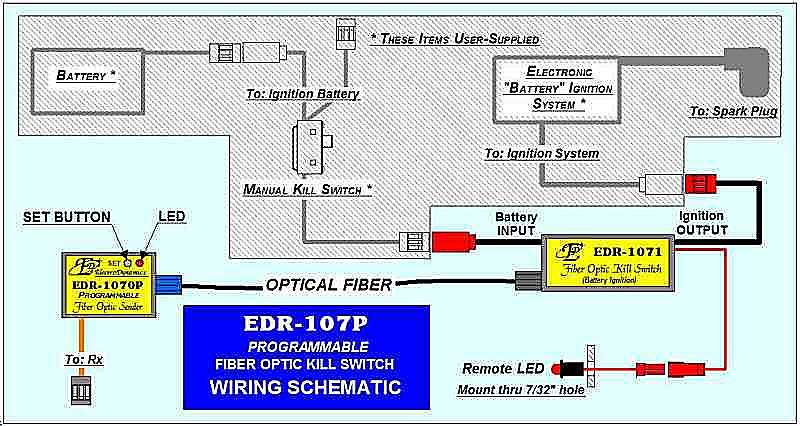

The EDR-1070P Fiber Optic Sender unit plugs into an Aux. channel on your Rx, and the EDR-1071 Fiber Optic Kill
Switch plugs in between your existing electronic ignition battery and the ignition system, in-line with the existing
manual On/Off switch. The EDR-1070P communicates with the EDR-1071 thru a plastic optical fiber, which ensures no
ignition noise can get into your radio! When the Aux switch on your Tx is On, the EDR-1070P commands the EDR-1071 to
switch on your ignition. If the Aux switch on the Tx is Off, the ignition is Off. If the Rx is switched off, the
ignition is AUTOMATICALLY switched off.
 The EDR-107P
updates and improves
our popular and very successful EDR-107, originally developed for Dave von Linsowe,
and flown at two consecutive Tournament of Champions!
ALL
the Reliability and Ease-of-use of the EDR-107
PLUS:
- NEW,
Space-saving, MORE RUGGED, computerized Sender
with Programmable switch point and "reverse".
- Even EASIER to
install - no need to set Transmitter endpoints and reversing.
- Save one precious
channel –
"Kill-with-Throttle-Trim"!
The EDR-107P System, complete, weighs less than 2 oz.
|
|
PROGRAMMABLE
Fiber Optic Kill Switch
System
Only $62.95
|
|
